Bible opteq has completed technics such as mold design, mold machining, precision cutting and surface finishing, bibleopteq is able for most complex frame and high precision parts, specially for thin wall parts, cam curve tubes, optical instruments, decorated parts for hotography and optical auxiliaries. for more please download the metal parts profile.

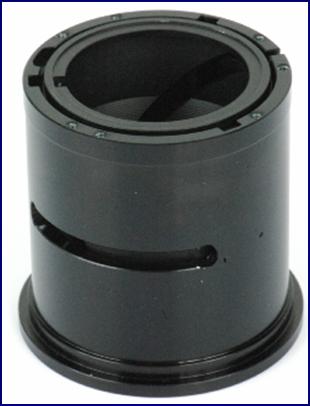

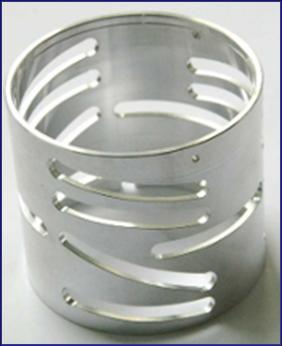

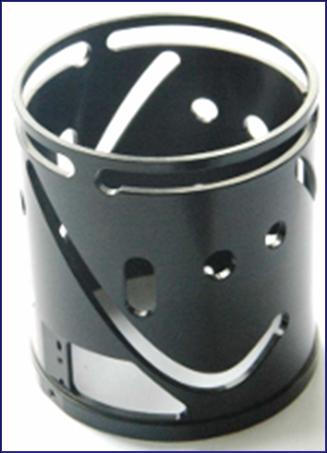

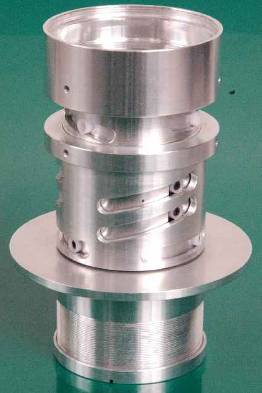

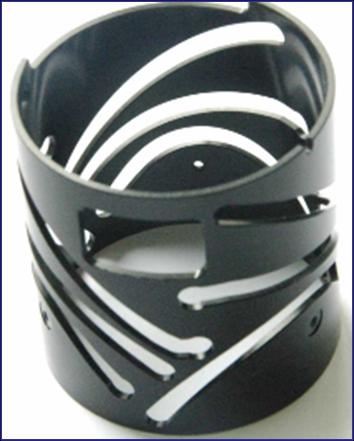

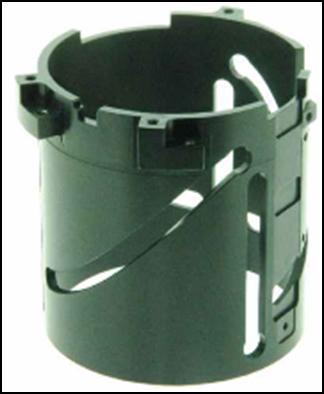

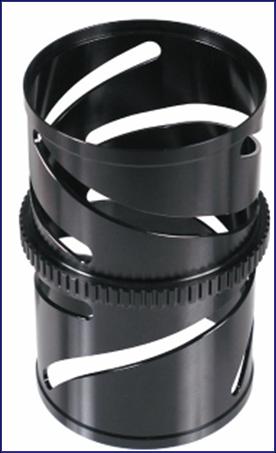

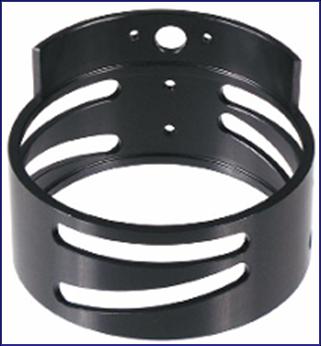

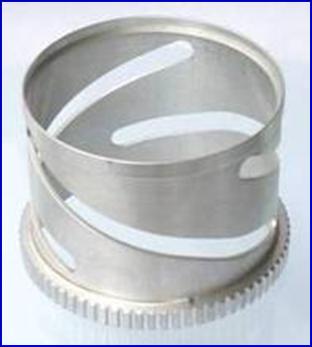

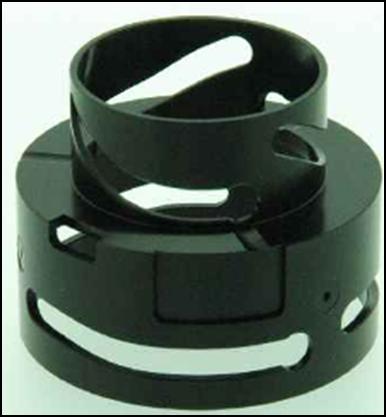

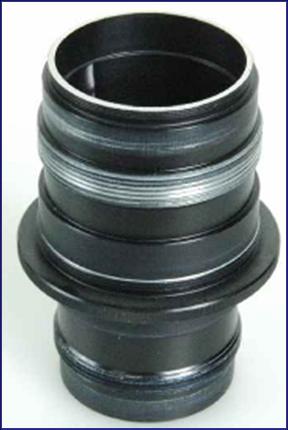

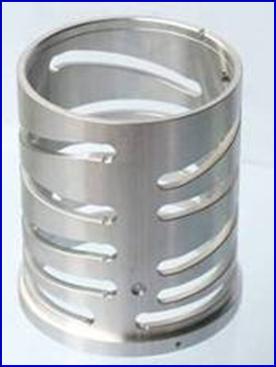

1,Cam tube parts
Application:
1, camera lens unit ; 2, projector lens unit; 3,comcord lens unit ;4, CCTV lens unit; 5, indurstry camera lens unit;
for more Cam tube infor, please contact: steven@bibleopteq.com;
2. Stainess steel parts
Stainless Steel: 303 / 304 / 316 / 416 / 420 / 430F / 440C / 17-4PH
Stainless Tubing: 304 DOM / Seamless
.jpg)
Application:
1, The stainess steel parts is used for all the indursty like the aeronautics, medical, communication equipments etc. for more infor, please contact: steven@bibleopteq.com ;

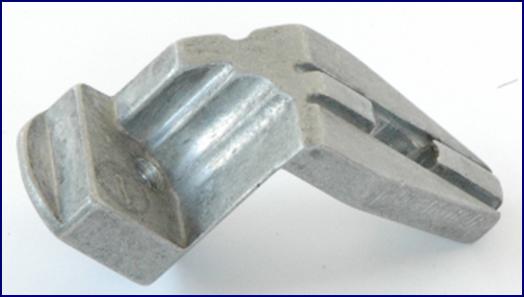

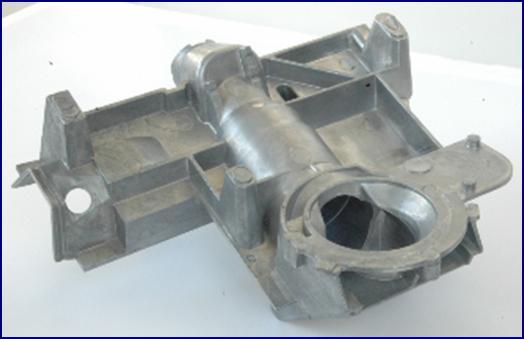

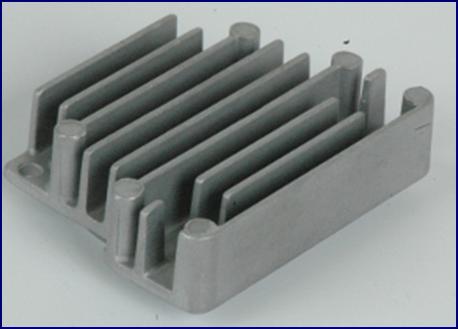

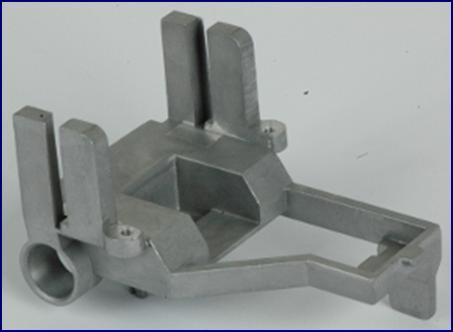

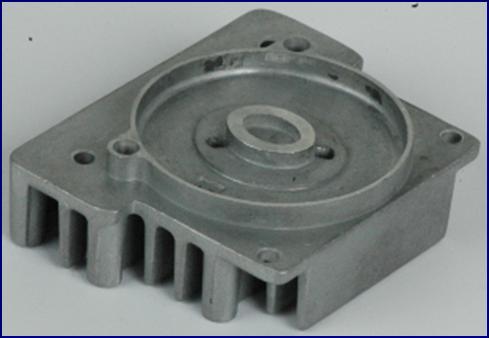

3.Investment casting and Die casting parts
The materials come as ADC10¡¢ADC12¡¢A380¡¢A360¡¢ZZnAl4—1 ¡£
All the Al. and zinc ingots are purified.
The reflex centering melting stove could satisfy the demand.
We could purchase the appointed material.
Professional staff and equipment. the staff will be trained constantly and kept skillful.Investment casting parts used in Microscope, water level, camera, projector, automobile safety belt, embroidery and so on.
|
Al alloy
|
Standard elemnets£º unit£º%
|
|
ADC10
|
Cu
|
Si
|
Mg
|
Zn
|
Fe
|
Mn
|
Ni
|
Sn
|
|
2--4
|
7.5-9.5
|
<0.3
|
<1.2
|
<1.3
|
<0.5
|
<0.5
|
<0.2
|
|
ADC12
|
1.5-3.5
|
9.6-12
|
<0.3
|
<1.0
|
<1.3
|
<0.5
|
<0.5
|
<0.2
|
|
1¡¢ADC10 same as German DIN GD-A1Si8Cu3
|
|
Zinc alloy
|
Standard elements£º unit£º%
|
|
ZnAl4Cu1Y
|
Cu
|
Al
|
Al
|
Fe
|
Pb
|
Sn
|
Ge
|
¡¡
|
|
0.75-1.25
|
3.5-4.3
|
0.03-0.08
|
<0.1
|
<0.005
|
<0.003
|
<0.004
|
¡¡
|
|
ADC12¡¢ADC10 Mechanic character
|
|
Material brand
|
Intensity
|
Toleranc
|
Extension
|
rigidity
|
rigidity
|
|
ADC10
|
241
|
157
|
1.5
|
73.6
|
39.4
|
|
ADC12
|
228
|
154
|
1.4
|
74.1
|
40
|
|
Mechanical character of ADC10 match with DIN GD-AlSi8Cu3Fe
|

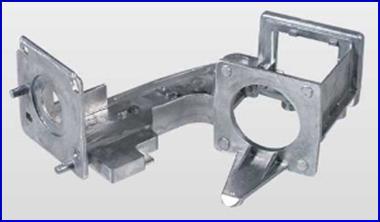

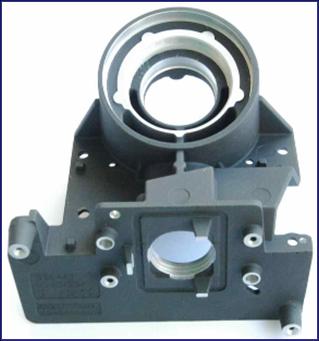

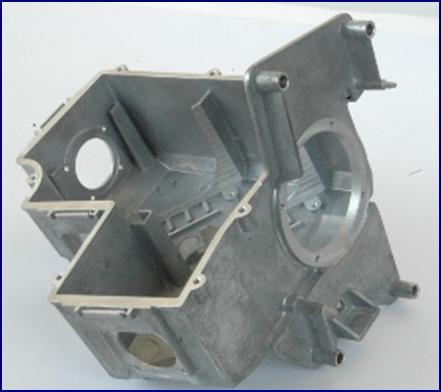

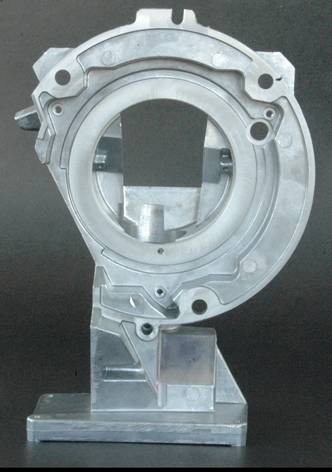

Die casting precision parts samples
 |
Part for Japanese spaceflight, more than 700 points to be tested and critical tolerance within 0.01mm, Oblique Direction Core Abstraction in Tooling |
 |
Italy automobile parts, complex frame and core-pulling ¡Ó12×250,guarantee air density with big vents |
 |

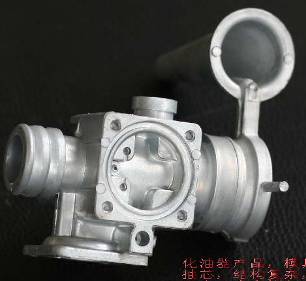

Japanese carburetor parts, four side core-pulling, complex frame, vacuum vents, accuracy controlled within 0.01mm |
Application
1,Verious kinds of optical equipment, optical lens, optical component;
2,indurstry machine;
3,motorcar;
4,other machine or the equipment.

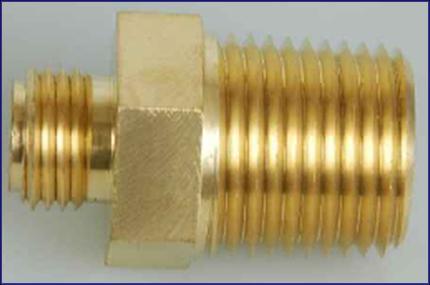

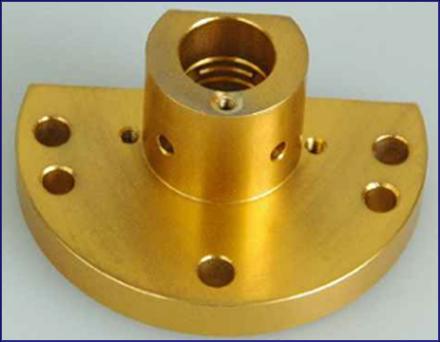

4.Brass parts

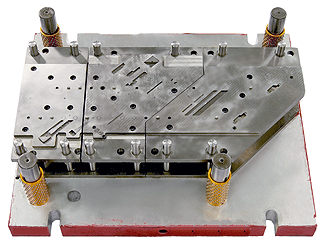

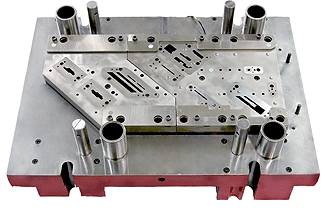

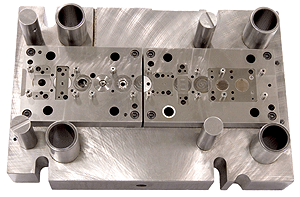

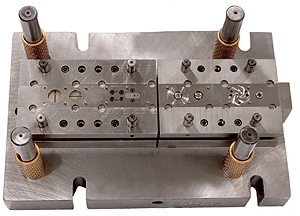

5. Molding and milling jig for producing
.gif)
.gif)
.gif)
.gif)
Our manufactures parts from many different materials which are either stocked at our factory or are available on short notice from our raw material vendor base.
Alloy: ETD 150 / 52100 / 4140 / 41L40 / 4150 / 4340
Aluminum: 2011 / 2024 / 6061 / 6063 / 7075
Aluminum Tubing
Brass: CDA 360
Bronze: 544 / 932
Carbon Steel: 1018 / 1117 / 1141 / 1144 / 12L14 / 1215 / Stressproof / Fatigueproof
Carbon Steel Tubing: 1020 DOM / 1026 DOM / Seamless
Castings: Aluminum Die Cast / Aluminum Investment Cast / Steel Investment Cast
Stainless Steel: 303 / 304 / 316 / 416 / 420 / 430F / 440C / 17-4PH
Stainless Tubing: 304 DOM / Seamless
Plastics: Acetal / Delrin / Lexan / Nylon / Nylatron / PVC / Ultem
Powder Metal: Carbon / Stainless
Rubber: EPDM / Foam / Nitrile / TPE / Urethane
In-house auto saw cutting and bar chamfering
Outside Services By Certified Vendors: Heat Treat / Plating / Testing
6,surface finishing and print
So many years focus on surface finishing for traditional camera, microscope, mapping instruments and other precision parts.As business developing all around the world, we begins surface finishing service for metal parts of CCTV lens, Monitor lens, scanner lens, projector, small digital camera, SLR digital camera zoom lens.
Professional chemical chamber and many test equipments. Main technics: Al anodized oxidation£¬brass oxidation, iron oxidation, plating brass, plating gold, plating chromium, plating nickel, spray painting and coating, plastic coating, silk print, move print, thin plate etching.
Surface finishing ability
1,Al anodized
Al anodized black
Al anodized black, sliding
Al anodized black, matte
Al clear anodized
Al Die-casting anodized

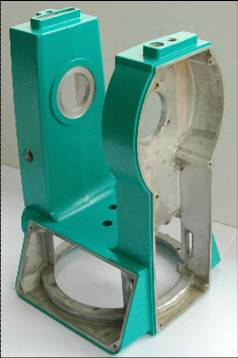

2,Spray painting
many semi-bright paints,
colorful paints,
many calm bright paints,
black without brightness paints
3,Plastic coating
capable for many color plastic paints
4,Orange texture
powder mainly for high level parts
5,Silk prints Shift prints
plane silk print, curve silk print plane shift print, curve shift print
