With over 15 optical design experience, Bopteq's 8 optical designer can do the Digital video and security zoom lenses. now mass production lens include: 36x optical zoom, 22x optical zoom, 18x optical zoom, 12x optical zoom. the lenses used in Security camera, digital video, and projector...
By all the main plastics, glass lens, and metal mechanical parts made in house, we can offer our customer the reasonable price, let clients have a competition in the market.
Fix focus lenses
|
|
|
|
|
|
Model:BBAB0181
Focal Length:1.8mm
Aperture:2.5
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:170° |

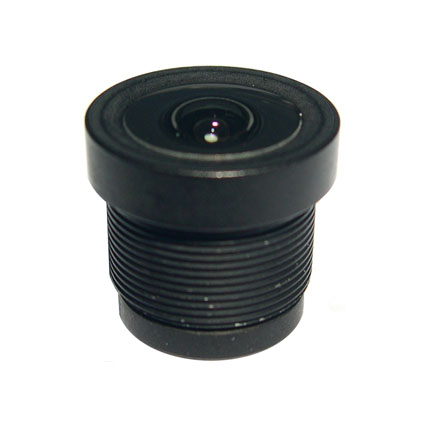

Model:BBAB0181C-F
Focal Length:1.8mm
Aperture:2.5
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:170° |
Model:BBAB0182
Focal Length:1.8mm
Aperture:2.5
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:170° |
Model:BBAB0185C-F
Focal Length:1.8mm
Aperture:2.5
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:170° |
|
|
|
|
|
|
Model:BBAB0196C-F
Focal Length:2.0mm
Aperture:2.2
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:156° |
Model:BBAB0197C-F
Focal Length:2.0mm
Aperture:2.2
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:156° |

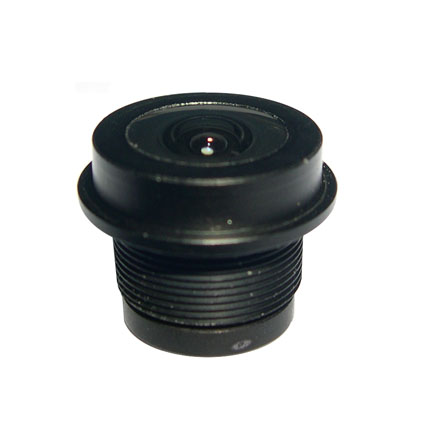

Model:BBAB0198C
Focal Length:2.0mm
Aperture:2.2
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:156° |
Model:BBAB0298
Focal Length:2.0mm
Aperture:2.2
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:156° |
|
|
|
|
|
|
Model:BBAB0205C
Focal Length:2.0mm
Aperture:2.4
Mount:M12X0.5P
Image Format:1/4-inch
Field Angle:156° |
Model:BBAB0211
Focal Length:2.1mm
Aperture:2.0
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:151° |
Model:BBAB0251
Focal Length:mm
Aperture:1.8
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:102° |
Model:BBAB0369
Focal Length:3.6mm
Aperture:2.0
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:102° |
|
|
|
|
|
|

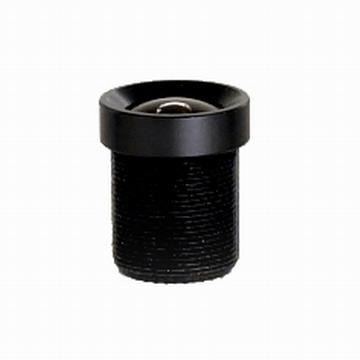

Model:BBAB0618DN
Focal Length:6mm
Aperture:1.8
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:56° |

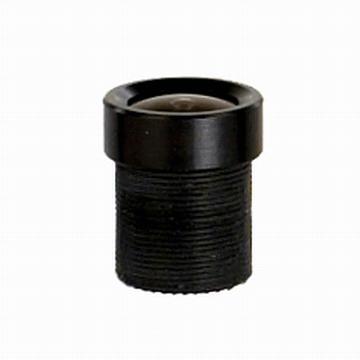

Model:BBAB0818DN
Focal Length:8mm
Aperture:1.8
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:44° |

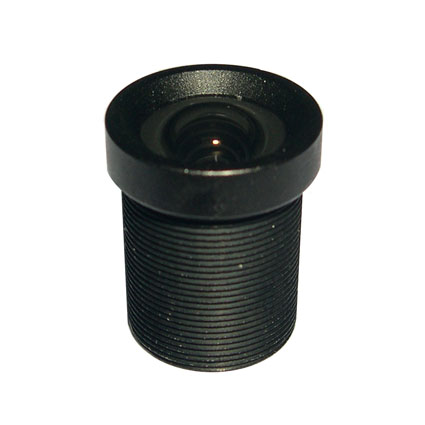

Model:BBAB0825
Focal Length:8.0mm
Aperture:2.0
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:44° |

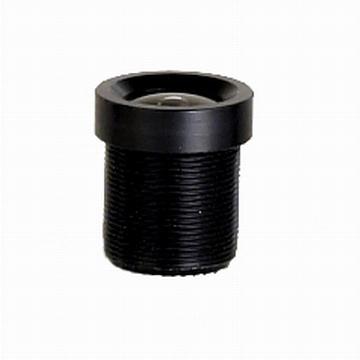

Model:BBAB03618
Focal Length:3.6mm
Aperture:1.8
Mount:M12X0.5P
Image Format:1/3-inch
Field Angle:102° |
CCTV Zoom lenses
|
|
12x optical zoom lens
Pixel：0.3M
EFL：5.5-66
Composition：10G
TTL：54.4mm
SENSOR：1/3"
FNO：3.1-3.7 |
|
22x optical zoom lens Pixel：0.3M
EFL：4-88
Composition：12G
TTL：73.9mm
SENSOR：1/4"
FNO：1.97-2.18 |
|
|
16x optical zoom lens
Pixel：2.0M
EFL：6-96
Composition：13G
TTL：79.43mm
SENSOR：18x
FNO：1.5-3.6 |
|
10x optical zoom lens
Pixel：5.0M
EFL：4.9-49
Composition：14G
TTL：55.7
SENSOR：1/3"
FNO：1.8-3.0 |
|
|
36x optical zoom lens
Pixel：0.3M
EFL：3.4-122.4
Composition：16G
TTL：80.1mm
SENSOR：1/4"
FNO：1.8-2.1 |
|
18x optical zoom lens Pixel：0.3M
EFL：4-88
Composition：12G
TTL：73.9mm
SENSOR：1/4"
FNO：1.97-2.18 |
Indurstry camera lenses
|
|

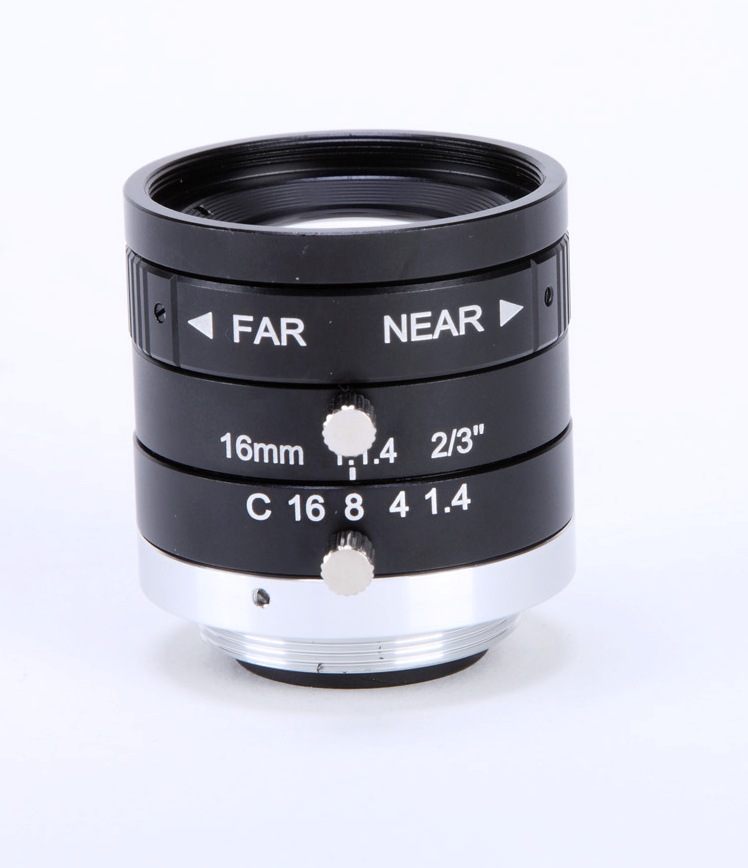

Model:BBM-1416MP
Image Format : 2/3’’
Mount type: CS
Focal length: 16.33mm
Iris Range: F1.4-C
Weight: 81g |
|
Model:BBM-1425MP
Image Format: 2/3’’
Mount type: CS
Focal length: 25mm
Iris Range: F1.4-C
Weight: 83g |
|
|
Model:BBM-1850MP
Image Format : 2/3’’
Mount type: CS
Focal length: 50mm
Iris Range: F1.8-C
Weight: 98g |
|
Model:BBM-2875MP
Image Format : 2/3’’
Mount type: CS
Focal length: 75mm
Iris Range: F2.8-C
Weight: 102g |
|
|
BBT-3080D
Image Format 1/3''
Mount type: CS
Focal length: 3.0-8.0mm
Iris Range: F1.0-Close
Weight: 55g |
|
BBT-2713DIR
Image Format : 1/3’’
Mount type: CS
Focal length: 2.7-13.0mm
Iris Range: F1.3-F360C
Weight: 78g |
|
|
BBT-1222DIR
Image Format : 1/3''
Mount type: CS
Focal length: 2.2mm
Iris Range: F1.2-F360C
Weight: 55g |
|
BBT-2713MIR
Image Format : 1/3’’
Mount type: CS
Focal length: 2.7-13.0mm
Iris Range: F1.3-close
Weight: 85g |
10Million Pixel industry machine camera lens
Our industry camera lens used for the Auto printer, MedicalEquipment and the industry production line.now our lens export to the Germany, Japan, Israel,UK, Canada,Austria...... with the good quality and over 40 years camera lens experience, support our all customer...
 |
 |
 |
|
Model.:BBM2428-P
Focal Length:24mm
Angle Of View;84°
Aperture:F2.8-F22
Optical Construction: 8 pcs 7group
Lens Mount:M42×1 mm;C, CS,PK,AI,MD
Format（inch）:1.7"
Minmum Of Distance:300mm
Accessory Size:M55×0.75 mm
Figure Size:∮64×65 mm
Weight:290g |
Model.:BBM2428-P
Focal Length:24mm
Angle Of View;84°
Aperture:F2.8-F16
Optical Construction: 8 pcs 7group
Lens Mount:M42×1 mm;C, CS,PK,AI,MD
Format（inch）:1.7"
Minmum Of Distance:300mm
Accessory Size:M55×0.75 mm
Figure Size:∮64×65 mm
Weight:290g |
Model:BBM5018-P
Focal Length:50mm
Angle Of View:47°
Aperture:F1.8-F22
Optical Construction:6pcs 5group lens
Lens Mount:M42×1 mm;C, CS,PK,AI,MD
Format（inch）:1.7"
Minmum Of Distance:450mm
Accessory Size:M52×0.75mm
Figure Size:∮64×56 mm
Weight:210g |
|
